Flexible Hose Conveyor
Comprehensive Grain Conveying Systems
Explore our tailored solutions designed for efficient and reliable grain transportation in industrial applications.
01
Flexible Hose Conveyor-Introduction

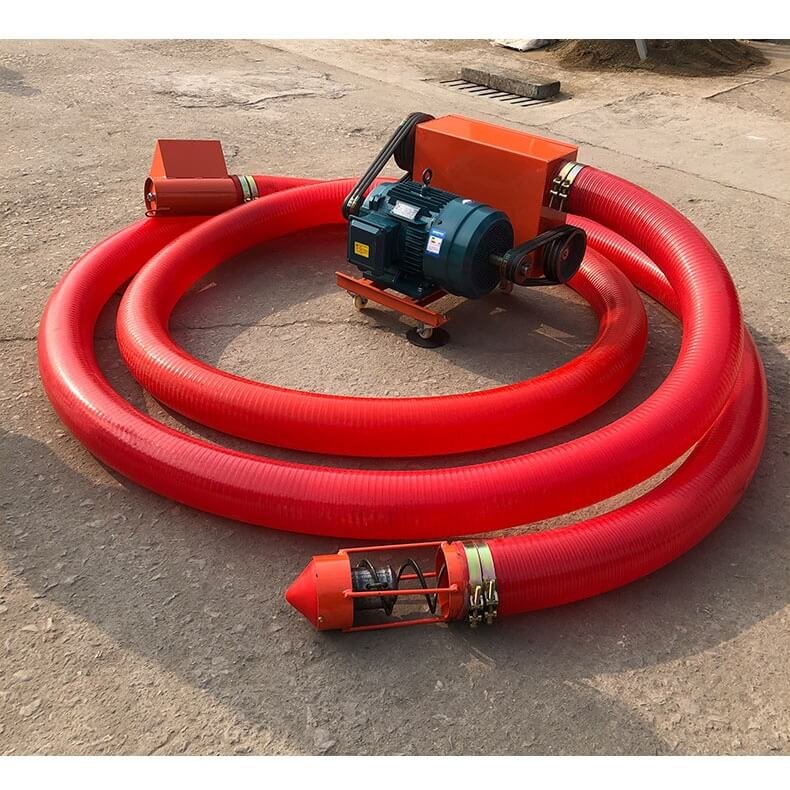

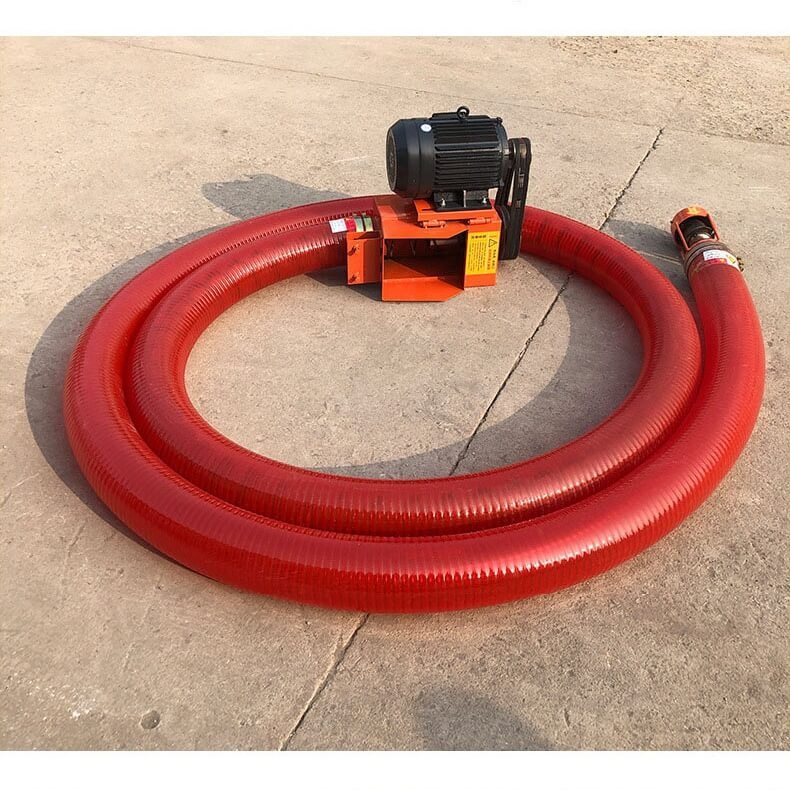

The KZT series flexible hose conveyor is a new generation of material handling equipment designed and manufactured by Shandong Karanze Machinery Co., Ltd. It utilizes an auger-based spiral feeding mechanism, featuring a reinforced Oxford-fabric hose and an internal spiral auger. Driven by a motor, the auger rotates to propel material—drawn in through the inlet—along the helical path of the blades until it is discharged at the outlet.
02
Flexible Hose Conveyor-Characteristics
Compared to traditional conveying equipment, the flexible hose conveyor offers superior flexibility and adaptability. Its auger design handles low-viscosity powders and granular materials effectively, while the enclosed conveying process minimizes dust leakage. The reinforced Oxford hose is wear-resistant and age-resistant, making it suitable for use in demanding environments. The equipment is ideal for applications such as loading grain on farms, transferring sand and gravel at construction sites, and handling powdered materials in factories; it is particularly well-suited for operations in confined spaces or environments requiring frequent equipment relocation. Custom designs are also available to meet specialized needs, such as coal ash extraction and cement conveying.
Flexible Hose Conveyor Technical Datasheet
| Model | Type | Motor Power | Pipe Diameter (mm) | Total Length (m) | Capacity (ton/h) |
| KZT-100-2 Phase Motor | Single Pipe | 3kw | 100 | 3-8 | 3-5 |
| KZT-120-2 Phase Motor | Single Pipe | 4kw | 120 | 3-8 | 8-10 |
| KZT-100-3 Phase Motor | Single Pipe | 3kw | 120 | 3-8 | 8-10 |
| KZT-160-3 Phase Motor | Single Pipe | 5.5kw | 160 | 3-8 | 20-25 |
| KZT-100-3 Phase Motor | Double Pipe | 5.5kw | 100 | 8-15 | 8-10 |
| KZT-120-3 Phase Motor | Double Pipe | 5.5kw | 120 | 8-15 | 8-10 |
| KZT-160-3 Phase Motor | Double Pipe | 11kw | 160 | 8-15 | 20-25 |
Flexible Hose Conveyor Applications
Wheat
Sand
Soybeans
Cement
Sorghum
Corn
Rice
Coffee
Karanze's conveyors have significantly improved our efficiency and reliability in grain handling. Their dedication to quality is evident in every product.
Emily Johnson from Thailand
Why Choose Karanze for Your Machinery Needs?
At Karanze, we prioritize innovation and quality. Our commitment to excellence ensures durable solutions tailored for the most demanding industrial environments.

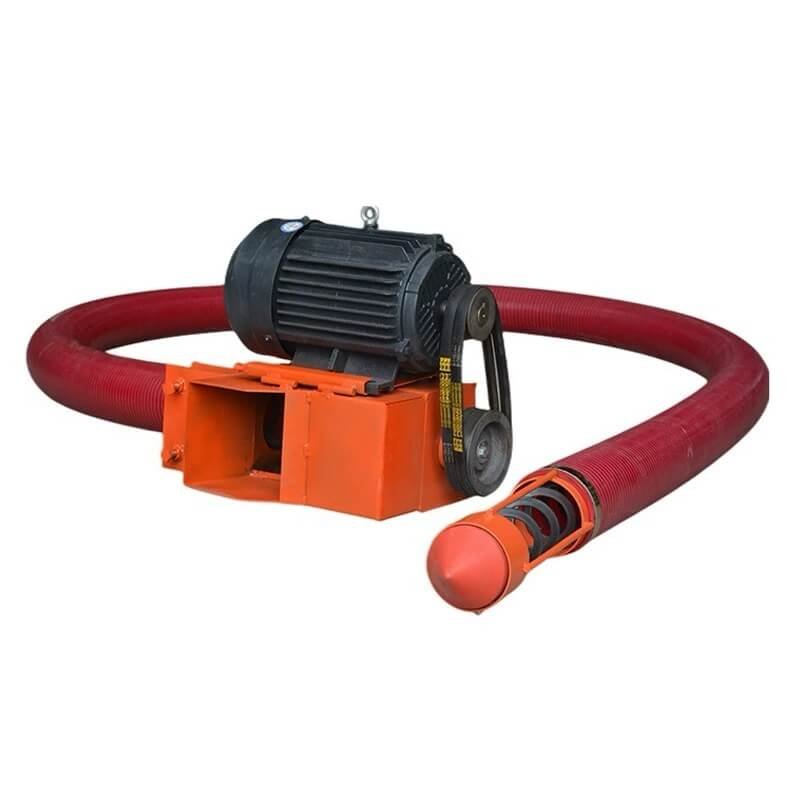

Single Pipe Flexible Hose Conveyor
Our equipment leverages cutting-edge technology to ensure maximum efficiency and reliability. We focus on continual innovation to meet industry demands.

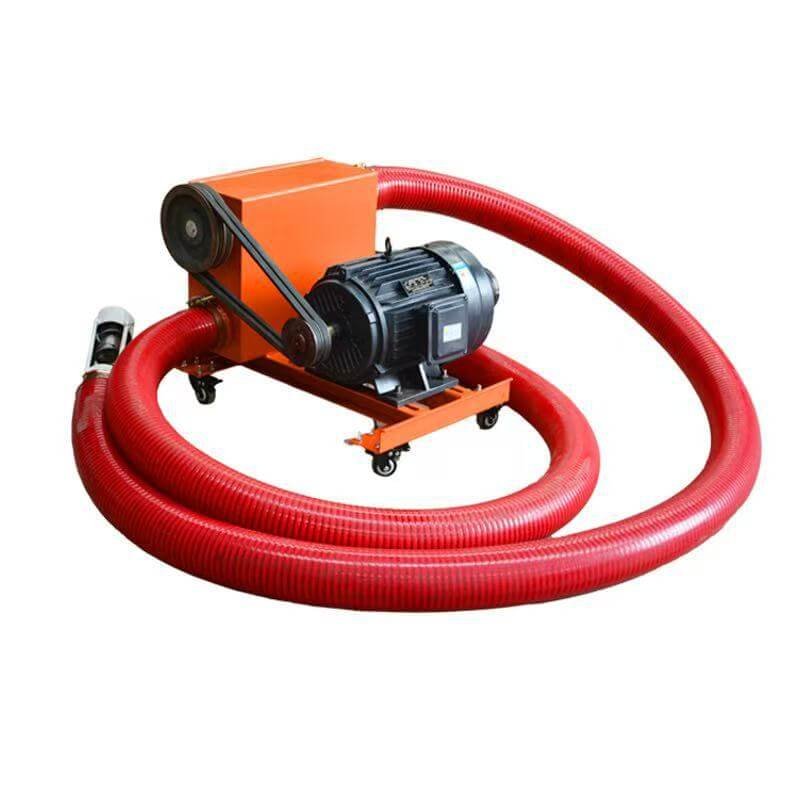

Double Pipe Flexible Hose Conveyor
We pride ourselves on offering outstanding customer service. From initial consultation to after-sales support, our team is here to assist you every step of the way.
Start Your Project Today
Contact us now to discuss how our advanced grain conveying solutions can meet your specific needs and enhance your operations.
